Compactair

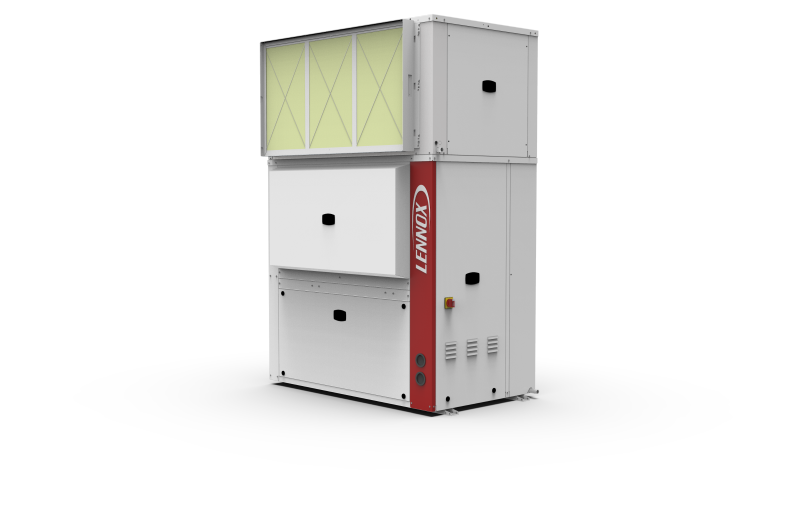

Die COMPACTAIR ist ein vertikales Klimagerät für die Innenaufstellung. Sein spezielles kubisches Design ist für die Komfortkühlung und -heizung von mittelgroßen, bis großen Räumen (200 bis 1000 m2 pro Gerät) in einem urbanen Bereich gedacht, wo die Installation auf dem Dach zu komplex sein würde. Es ist eine breite Palette von Optionen verfügbar, die alle werkseitig montiert oder lose geliefert werden.

Select Tabs

Modelbezeichnung

CA ^A M ^B H ^C 020 ^D S ^E M ^F 2 ^G M ^H

A CA = COMPACTAIR

B M = Kompaktgerät – S = Verflüssigungssatz (Außengerät/Split-Ausführung) – I = Luftaufbereitungsgerät (Innengerät/Split-Ausführung)

C H = Wärmepumpengerät

D Maximale Kühlleistung in kW

E S = 1 Kreislauf – D = 2 Kreisläufe

F M = R410A

G 2 = Revisionsnummer

H M = 400V/3/50Hz - T = 230V/1/50Hz

Model Specification

Seasonal Efficiencies Heating Mode
Product Index
Seasonal Coefficient Of Performance - SCOP
Seasonal Energy Efficiency
Eurovent Energy Efficiency Class Part Load Operation
Refrigeration Circuit
Number Of Circuits
Number Of Compressors
Refrigerant Load - kg
Nominal Thermal Performance Heating
Heating Capacity - kW
Total Power Input - kW
Cop Net
Seasonal Efficiencies Cooling Mode
Seasonal Energy Efficiency Ratio - SEER
Ventilation Data
Minimum Airflow Rate - m³/h
Nominal Airflow Rate - m³/h
Maximum Airflow Rate - m³/h
Acoustic Data
Outdoor Sound Power Standard Unit - dB(A)
Indoor Blower Outlet Sound Power Standard Unit - dB(A)
Auxillary Heating
Gas heating capacity - Standard/High - kW
Electric heater capacity - Standard/High - kW
Electric pre-heater capacity - Standard/High - kW
Hot Water Coil Capacity Air Inlet Water
Nominal Thermal Performance Cooling
Cooling Capacity - kW
Total Power Input - kW
Electrical Data
Maximum Power - kW
Maximum Current - A
Starting Current - A
Short Circuit Current - kA

CAMH020
3.33
130.3
A
1
1
6.7
15.7
3.8
4.09
3.78
1800
3700
4500
84
69
-
10/20
-
-
17.6
5.5
15.1
27.3
27.3
10

CAMH035
3.38
132.3
A
1
1
6.7
23.7
6.8
3.5
4.38
2800
5800
6200
88
78
-
10/20
-
-
26.3
8.7
20.8
36.8
36.8
10

CAMH045
3.3
128.9
A
1
1
9
30.8
9
3.41
4.59
3700
7500
7500
95
83
-
10/20
-
-
38.3
13.2
29
50.1
50.1
10

CAMH060
3.41
133.3
B
2
3
12
46.4
13.7
3.39
3.86
6200
12500
12500
90
83
-
15 / 40
-
-
53.1
18.1
50.1
81.7
124.6
10

CAMH075
3.36
131.2
C
2
3
14
57
18.9
3.02
3.99
6700
13500
13500
95
85
-
15 / 40
-
-
64.5
22.7
57.5
96.7
183.4
10

CAMH085
3.35
131.1
C
2
3
18
66.8
21.9
3.05
3.98
7500
15000
15000
98
87
-
15 / 40
-
-
79.6
27.7
64.5
108.1
194.8
10

Cooling Capacity - Cooling mode : According to EN14511 nominal conditions - Outdoor temperature 35°C DB - Indoor temperature 27°C DB / 19°C WB
Heating Capacity - Heating mode : According to EN14511 nominal conditions - Outdoor temperature 7°C DB / 6°C WB - Indoor temperature 20°C DB
Seasonal Energy Efficiency Ratio - SEER : SEER in accordance with standard EN14825.
Seasonal energy efficiency - Cooling Mode : Space cooling energy efficiency following Ecodesign regulation EU 2016/2281
Seasonal Coefficient of Performance - SCOP : SCOP in accordance with standard EN 14825 (average climate conditions).
Seasonal energy efficiency - Heating Mode : Space heating energy efficiency following Ecodesign regulation EU 2016/2281.

Model Specification

Refrigeration Circuit
Product Index
Number Of Circuits
Number Of Compressors
Refrigerant Load - kg
Seasonal Efficiencies Cooling Mode
Seasonal Energy Efficiency Ratio - SEER
Seasonal Energy Efficiency
Eurovent Energy Efficiency Class Part Load Operation
Ventilation Data
Minimum Airflow Rate - m³/h
Nominal Airflow Rate - m³/h
Maximum Airflow Rate - m³/h
Acoustic Data
Outdoor Sound Power Standard Unit - dB(A)
Indoor Blower Outlet Sound Power Standard Unit - dB(A)
Nominal Thermal Performance Heating
Heating Capacity - kW
Total Power Input - kW
Cop Net
Seasonal Efficiencies Heating Mode
Seasonal Coefficient Of Performance - SCOP
Electrical Data
Maximum Power - kW
Maximum Current - A
Starting Current - A
Short Circuit Current - kA
Auxillary Heating
Gas heating capacity - Standard/High - kW
Electric heater capacity - Standard/High - kW
Electric pre-heater capacity - Standard/High - kW
Hot Water Coil Capacity Air Inlet Water
Nominal Thermal Performance Cooling
Cooling Capacity - kW
Total Power Input - kW

CASH + CAIH020
1
1
6.7
3.78
148.1
A
1800
3700
4500
84
69
15.7
3.8
4.09
3.33
2.7 / 12.4
4.3 / 23.2
4.3 / 23.2
10
-
10/20
-
-
17.6
5.5

CASH + CAIH035
1
1
6.7
4.38
172.2
A
2800
5800
6200
88
78
23.7
6.8
3.49
3.38
2.7 / 18.2
4.3 / 32.7
4.3 / 32.7
10
-
10/20
-
-
26.3
8.7

CASH + CAIH045
1
1
9
4.59
180.5
B
3700
7500
7500
95
83
30.8
9
3.41
3.3
3.9 / 25.2
6.1 / 44.2
6.1 / 44.2
10
-
10/20
-
-
38.3
13.2

CASH + CAIH060
2
3
12
3.86
151.2
B
6200
12500
12500
90
83
46.4
13.7
3.39
3.41
5.4 / 44.8
8.4 / 73.5
8.4 / 116.4
10
-
15 / 40
-
-
53.1
18.1

CASH + CAIH075
2
3
14
3.99
156.5
B
6700
13500
13500
95
85
57
18.9
3.02
3.36
7.7 / 49.9
12 / 84.9
12 / 171.6
10
-
15 / 40
-
-
64.5
22.7

CASH + CAIH085
2
3
18
3.98
156.1
B
7500
15000
15000
98
87
66.8
21.9
3
3.35
7.7 / 56.9
12 / 96.3
12 / 183
10
-
15 / 40
-
-
79.6
27.7

Cooling Capacity - Cooling mode : According to EN14511 nominal conditions - Outdoor temperature 35°C DB - Indoor temperature 27°C DB / 19°C WB
Heating Capacity - Heating mode : According to EN14511 nominal conditions - Outdoor temperature 7°C DB / 6°C WB - Indoor temperature 20°C DB
Seasonal Energy Efficiency Ratio - SEER : SEER in accordance with standard EN14825.
Seasonal energy efficiency - Cooling Mode : Space cooling energy efficiency following Ecodesign regulation EU 2016/2281
Seasonal Coefficient of Performance - SCOP : SCOP in accordance with standard EN 14825 (average climate conditions).
Seasonal energy efficiency - Heating Mode : Space heating energy efficiency following Ecodesign regulation EU 2016/2281.
