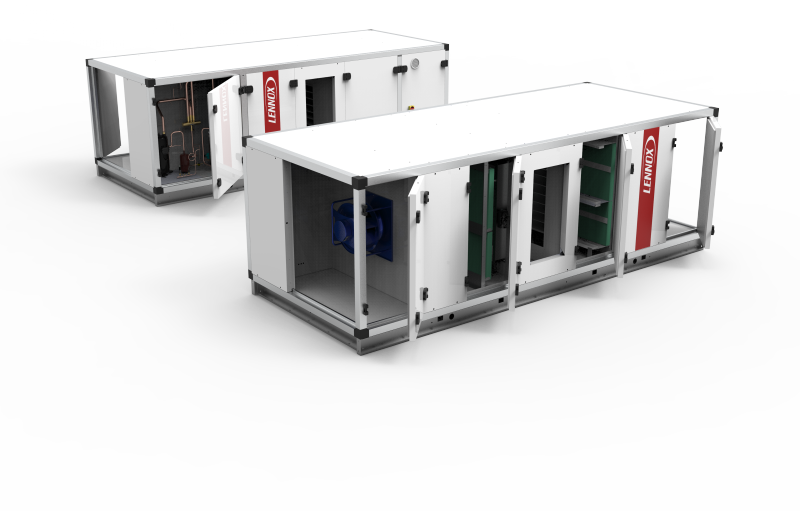

e-MovAir 3.198

Unidade compacta de tratamento de ar

e-MovAir

e-MovAir 3.198

O e-MovAir é a melhor solução para manter a temperatura e a humidade em espaços desafiantes, tais como centros culturais e desportivos. Proporcionará um desempenho superior ao esperado em termos de eficiência energética e garantirá a máxima higiene nos sistemas de ventilação.

R410A
Benefícios Aplicações Contactos Recursos Serviços

Nomenclatura do modelo

eM A 24 B A C H D 140 E

A eM = e-MovAir

B Caudal de ar (xx000)

C Capacidade

D H = Bomba de calor

E A = Arrefecido a ar

Model Specification

  • Seasonal Efficiencies Cooling Mode
  • Product Index
  • Seasonal Energy Efficiency Ratio - SEER
  • Seasonal Energy Efficiency
  • Eurovent Energy Efficiency Class Part Load Operation
  • Nominal Thermal Performance Heating
  • Heating Capacity - kW
  • Total Power Input - kW
  • Cop Net
  • Ventilation Data
  • Minimum Airflow Rate - m³/h
  • Nominal Airflow Rate - m³/h
  • Maximum Airflow Rate - m³/h
  • Auxillary Heating
  • Gas heating capacity - Standard/High - kW
  • Electric heater capacity - Standard/High - kW
  • Electric pre-heater capacity - Standard/High - kW
  • Hot Water Coil Capacity
  • Refrigeration Circuit
  • Number Of Circuits
  • Number Of Compressors
  • Refrigerant Load
  • Seasonal Efficiencies Heating Mode
  • Seasonal Coefficient Of Performance - SCOP
  • Nominal Thermal Performance Cooling
  • Cooling Capacity - kW
  • Eer Net
  • Acoustic Data
  • Outdoor Sound Power Standard Unit - dB(A)
  • Indoor Blower Outlet Sound Power Standard Unit - dB(A)
  • Electrical Data
  • Maximum Power - kW
  • Maximum Current - A
  • Starting Current - A
  • Short Circuit Current - kA
  •
  • eM03AH025
  • 4
  • 156
  • -
  •
  • 22.6
  • 4.9
  • 4.61
  •
  • 3500
  • 3500
  • 4500
  •
  • -
  • 9 / 18
  • 9 / 18
  • Capacity depends on air and water temperatures.
  •
  • 1
  • 1
  • 11
  •
  • 4
  •
  • 18.1
  • 3.2
  •
  • 48
  • 76
  •
  • 12.2
  • 19.5
  • Depends on operating conditions.
  • Depends on operating conditions.
  •
  • eM04AH028
  • 3.9
  • 155
  • -
  •
  • 25.7
  • 6.4
  • 4
  •
  • 3500
  • 4500
  • 5000
  •
  • -
  • 12 / 24
  • 12 / 24
  • Capacity depends on air and water temperatures.
  •
  • 1
  • 1
  • 12
  •
  • 4.2
  •
  • 24.6
  • 3.24
  •
  • 53
  • 82
  •
  • 12.2
  • 19.5
  • Depends on operating conditions.
  • Depends on operating conditions.
  •
  • eM05AH030
  • 4
  • 156
  • -
  •
  • 37.4
  • 9.6
  • 3.91
  •
  • 4000
  • 5500
  • 5500
  •
  • -
  • 12 / 24
  • 12 / 24
  • Capacity depends on air and water temperatures.
  •
  • 1
  • 1
  • 12
  •
  • 3.7
  •
  • 29.8
  • 3.16
  •
  • 58
  • 87
  •
  • 12.2
  • 19.5
  • Depends on operating conditions.
  • Depends on operating conditions.
  •
  • eM06AH035
  • 4.3
  • 169
  • -
  •
  • 34.2
  • 6.6
  • 5.22
  •
  • 5500
  • 5500
  • 6350
  •
  • -
  • 18 / 36
  • 18 / 36
  • Capacity depends on air and water temperatures.
  •
  • 1
  • 1
  • 18
  •
  • 3.9
  •
  • 23.2
  • 4.47
  •
  • 53
  • 79
  •
  • 22.8
  • 36.5
  • Depends on operating conditions.
  • Depends on operating conditions.
  •
  • eM07AH040
  • 4.4
  • 174
  • -
  •
  • 36.1
  • 8.2
  • 4.41
  •
  • 6300
  • 7200
  • 8280
  •
  • -
  • 18 / 36
  • 18 / 36
  • Capacity depends on air and water temperatures.
  •
  • 1
  • 1
  • 24
  •
  • 4.2
  •
  • 40
  • 5.22
  •
  • 58
  • 85
  •
  • 22.8
  • 36.5
  • Depends on operating conditions.
  • Depends on operating conditions.
  •
  • eM09AH055
  • 4.4
  • 171
  • -
  •
  • 60.5
  • 15
  • 4.02
  •
  • 8300
  • 9900
  • 9900
  •
  • -
  • 24 / 48
  • 24 / 48
  • Capacity depends on air and water temperatures.
  •
  • 1
  • 1
  • 24
  •
  • 4
  •
  • 49.9
  • 2.96
  •
  • 65
  • 93
  •
  • 22.8
  • 36.5
  • Depends on operating conditions.
  • Depends on operating conditions.
  •
  • eM10AH070
  • 4.1
  • 160
  • -
  •
  • 55.7
  • 11.9
  • 4.7
  •
  • 8600
  • 8600
  • 10000
  •
  • -
  • 24 / 48
  • 24 / 48
  • Capacity depends on air and water temperatures.
  •
  • 1
  • 2
  • 30
  •
  • 3.9
  •
  • 45.8
  • 4.58
  •
  • 62
  • 90
  •
  • 43.5
  • 69.8
  • Depends on operating conditions.
  • Depends on operating conditions.
  •
  • eM13AH085
  • 4.6
  • 180
  • -
  •
  • 84.4
  • 18.1
  • 4.67
  •
  • 10000
  • 13500
  • 15600
  •
  • -
  • 36 / 72
  • 36 / 72
  • Capacity depends on air and water temperatures.
  •
  • 2
  • 2
  • 20+20
  •
  • 4
  •
  • 70
  • 3.79
  •
  • 66
  • 87
  •
  • 43.5
  • 69.8
  • Depends on operating conditions.
  • Depends on operating conditions.
  •
  • eM17AH100
  • 4.3
  • 170
  • -
  •
  • 107.2
  • 29.1
  • 3.68
  •
  • 15600
  • 18500
  • 18500
  •
  • -
  • 36 / 72
  • 36 / 72
  • Capacity depends on air and water temperatures.
  •
  • 2
  • 2
  • 20+20
  •
  • 4.1
  •
  • 102.3
  • 2.96
  •
  • 72
  • 95
  •
  • 43.5
  • 69.8
  • Depends on operating conditions.
  • Depends on operating conditions.
  •
  • eM18AH110
  • 4.4
  • 171
  • -
  •
  • 106.1
  • 23.8
  • 4.47
  •
  • 17500
  • 17500
  • 20300
  •
  • -
  • 48 / 96
  • 48 / 96
  • Capacity depends on air and water temperatures.
  •
  • 2
  • 2
  • 21+21
  •
  • 4
  •
  • 99.2
  • 3.19
  •
  • 71
  • 93
  •
  • 72.3
  • 116
  • Depends on operating conditions.
  • Depends on operating conditions.
  •
  • eM24AH140
  • 4.8
  • 187
  • -
  •
  • 140.8
  • 31.7
  • 4.45
  •
  • 20000
  • 24000
  • 27600
  •
  • -
  • 48 / 96
  • 48 / 96
  • Capacity depends on air and water temperatures.
  •
  • 2
  • 3
  • 18+27
  •
  • 4.1
  •
  • 118.6
  • 3.14
  •
  • 74
  • 91
  •
  • 72.3
  • 116
  • Depends on operating conditions.
  • Depends on operating conditions.
  •
  • eM30AH170
  • 4.2
  • 166
  • -
  •
  • 166.3
  • 45.5
  • 3.7
  •
  • 26000
  • 30000
  • 30000
  •
  • -
  • 66 / 126
  • 66 / 126
  • Capacity depends on air and water temperatures.
  •
  • 2
  • 3
  • 18+27
  •
  • 3.7
  •
  • 147
  • 2.7
  •
  • 79
  • 97
  •
  • 72.3
  • 116
  • Depends on operating conditions.
  • Depends on operating conditions.

  1. Cooling mode : According to EN14511 nominal conditions
    • Outdoor temperature 35°C DB
    • Indoor temperature 27°C DB / 19°C WB
  2. Heating mode : According to EN14511 nominal conditions
    • Outdoor temperature 7°C DB / 6°C WB
    • Indoor temperature 20°C DB
  3. SEER in accordance with standard EN14825.
  4. Space cooling energy efficiency following Ecodesign regulation EU 2016/2281
  5. SCOP in accordance with standard EN 14825 (average climate conditions).
  6. Space heating energy efficiency following Ecodesign regulation EU 2016/2281.
  7. Ventilation data - Supply fan ESP: 250 Pa / Exhaust fan ESP: 150Pa / Fresh air percentage: 80%
